Version: Latest-3.5

Authenticate User Groups

Enable Group Provider in StarRocks to authenticate, and authorize user groups from external authentication systems.

From v3.5.0 onwards, StarRocks supports Group Provider to collect group information from external authentication systems for user group management.

Overview

To deepen its integration with external user authentication and authorization systems, such as LDAP, OpenID Connect, OAuth 2.0, and Apache Ranger, StarRocks supports collecting user group information for a better experience on the collective user management.

With a group provider, you can fetch the group information from external user systems for different purposes. Group information is independent and can be integrated flexibly into authentication, authorization, or other processes without being tightly coupled to any specific workflow.

A Group Provider is essentially a mapping between users and groups. Any process that requires group information can query this mapping as needed.

Workflow

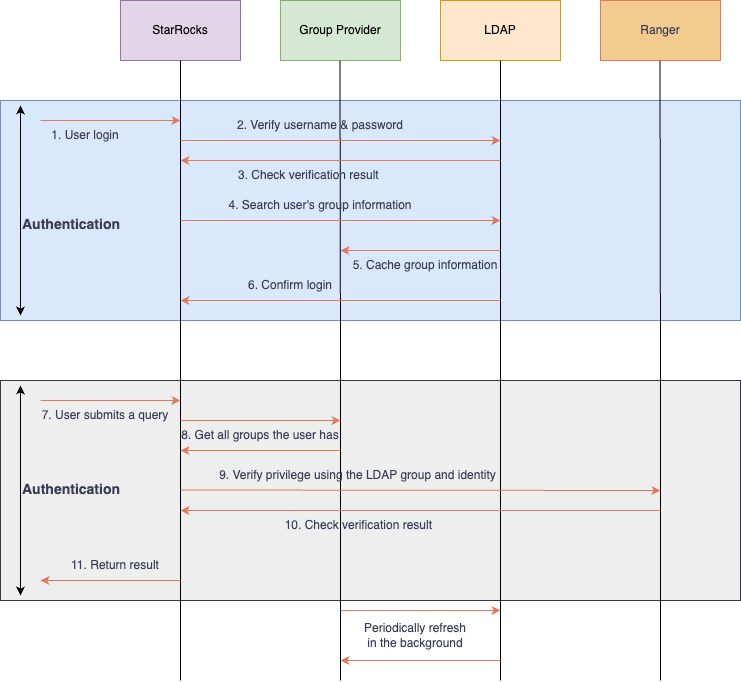

The following flow chart uses LDAP and Apache Ranger as an example to explain the workflow of Group Provider.

Group Provider

Create a group provider

StarRocks supports three types of group providers:

LDAP group provider: Search and match users with groups in your LDAP service
Unix group provider: Search and match users with groups in your operating system
File group provider: Search and match users with groups defined by a file

Syntax

-- LDAP group provider
CREATE GROUP PROVIDER <group_provider_name>
PROPERTIES (
    "type" = "ldap",
    ldap_info,
    ldap_search_group_arg,
    ldap_search_attr,
    [ldap_cache_attr]
)

ldap_info ::=
    "ldap_conn_url" = "",
    "ldap_bind_root_dn" = "",
    "ldap_bind_root_pwd" = "",
    "ldap_bind_base_dn" = "",
    ["ldap_conn_timeout" = "",]
    ["ldap_conn_read_timeout" = ""]
    ["ldap_ssl_conn_allow_insecure" = ""]
    ["ldap_ssl_conn_trust_store_path" = ""]
    ["ldap_ssl_conn_trust_store_pwd" = ""]

ldap_search_group_arg ::=
    { "ldap_group_dn" = ""
    | "ldap_group_filter" = "" },
    "ldap_group_identifier_attr" = ""

ldap_search_user_arg ::=
    "ldap_group_member_attr" = "",
    "ldap_user_search_attr" = ""

ldap_cache_arg ::=
    "ldap_cache_refresh_interval" = ""

-- Unix group provider
CREATE GROUP PROVIDER <group_provider_name>
PROPERTIES (
    "type" = "unix"
)

-- File group provider
CREATE GROUP PROVIDER <group_provider_name>
PROPERTIES (
    "type" = "file",
    "group_file_url" = ""
)

Parameters

`type`

The type of the group provider to create. Valid values:

ldap: Creates an LDAP group provider. When this value is set, you need to specify ldap_info, ldap_search_group_arg, ldap_search_user_arg, and optionally ldap_cache_arg.
unix: Creates a Unix group provider.
file: Creates a File group provider. When this value is set, you need to specify group_file_url.

`ldap_info` parameter group

The information used to connect to your LDAP service.

`ldap_conn_url`

The URL of your LDAP server. Format: ldap://<ldap_server_host>:<ldap_server_port>).

`ldap_bind_root_dn`

The admin Distinguished Name (DN) of your LDAP service.

`ldap_bind_root_pwd`

The admin password of your LDAP service.

`ldap_bind_base_dn`

The base DN of the LDAP user for which the cluster searches.

`ldap_conn_timeout`

Optional. The timeout duration for the connection to your LDAP service.

`ldap_conn_read_timeout`

Optional. The timeout duration for the read operations in the connection to your LDAP service.

`ldap_ssl_conn_allow_insecure`

Optional. Whether to allow non-encrypted connections to the LDAP server. Default value: true. Setting this value to false indicates that SSL encryption is required to access LDAP.

`ldap_ssl_conn_trust_store_path`

Optional. Local path to store the SSL CA certificate of the LDAP server. Supports pem and jks formats. You do not need to set this item if the certificate is issued by a trusted organization.

`ldap_ssl_conn_trust_store_pwd`

Optional. The password used to access the locally stored SSL CA certificate of the LDAP server. pem-formatted certificates do not require a password. Only jsk-formatted certificates do.

`ldap_search_group_arg` parameter group

The arguments used to control how StarRocks searches for a group.

note

You can only specify either ldap_group_dn or ldap_group_filter. Specifying both is not supported.

`ldap_group_dn`

The DN of the group to be searched for. The group will be queried directly using this DN. Example: "cn=ldapgroup1,ou=Group,dc=starrocks,dc=com;cn=ldapgroup2,ou=Group,dc=starrocks,dc=com".

`ldap_group_filter`

A customized group filter that can be recognized by the LDAP server. It will be sent directly to your LDAP server for searching for the group. Example: (&(objectClass=groupOfNames)(cn=testgroup)).

`ldap_group_identifier_attr`

The attribute used as the identifier for the group name.

`ldap_search_user_arg` parameter group

The arguments used to control how StarRocks identifies for a user in a group.

`ldap_group_member_attr`

The attribute that represents group members. Valid values: member and memberUid.

`ldap_user_search_attr`

Specifies how to extract the user identifier from the member attribute value. You can explicitly define an attribute (for example, cn or uid) or use a regular expression.

`ldap_cache_arg` parameter group

The argument used to define the cache behavior for the LDAP group information.

`ldap_cache_refresh_interval`

Optional. The interval at which StarRocks automatically refreshes the cached LDAP group information. Unit: Seconds. Default: 900.

`group_file_url`

The URL or relative path (under fe/conf) to the file that defines the user groups.

note

A group file contains a list of groups and their members. You can define a group in each line where the group name and members are separated by a colon. Multiple users are separated by commas. Example: group_name:user_1,user_2,user_3.

Example

Suppose an LDAP server contains the following group and member information.

-- Group information
# testgroup, Group, starrocks.com
dn: cn=testgroup,ou=Group,dc=starrocks,dc=com
objectClass: groupOfNames
cn: testgroup
member: uid=test,ou=people,dc=starrocks,dc=com
member: uid=tom,ou=people,dc=starrocks,dc=com

-- User information
# test, People, starrocks.com
dn: cn=test,ou=People,dc=starrocks,dc=com
objectClass: inetOrgPerson
cn: test
uid: test
sn: FTE
userPassword::

Create a group provider ldap_group_provider for members in testgroup:

CREATE GROUP PROVIDER ldap_group_provider
PROPERTIES(
    "type"="ldap",
    "ldap_conn_url"="ldap://xxxx:xxx",
    "ldap_bind_root_dn"="cn=admin,dc=starrocks,dc=com",
    "ldap_bind_root_pwd"="123456",
    "ldap_bind_base_dn"="dc=starrocks,dc=com",
    "ldap_group_filter"="(&(objectClass=groupOfNames)(cn=testgroup))",
    "ldap_group_identifier_attr"="cn",
    "ldap_group_member_attr"="member",
    "ldap_user_search_attr"="uid=([^,]+)"
)

The above example uses ldap_group_filter to search for a group with the groupOfNames objectClass and a cn of testgroup. Therefore, cn is specified in ldap_group_identifier_attr to identify the group. ldap_group_member_attr is set to member so that the member attribute is used in the groupOfNames objectClass to identify members. ldap_user_search_attr is set to an expression uid=([^,]+), which is used to identify users in the member attribute.

Combine group provider with a security integration

After creating the group provider, you can combine it with a security integration to allow users specified by the group provider to log in to StarRocks. For more information on creating a security integration, see Authenticate with Security Integration.

Syntax

ALTER SECURITY INTEGRATION <security_integration_name> SET
(
    "group_provider" = "",
    "permitted_groups" = ""
)

Parameters

`group_provider`

The name of the group provider(s) to be combined with the security integration. Multiple group providers are separated by commas. Once set, StarRocks will record the user's group information under each specified provider upon login.

`permitted_groups`

Optional. The name of group(s) whose members are allowed to log in to StarRocks. Multiple groups are separated by commas. Make sure that the specified groups can be retrieved by the combined group provider(s).

Example

ALTER SECURITY INTEGRATION LDAP SET
(
        "group_provider"="ldap_group_provider",
        "permitted_groups"="testgroup"
);

Combine group provider with external authorization system (Apache Ranger)

Once you configure the associated group provider in the security integration, StarRocks will record the user's group information upon login. This group information will then be automatically included in the authorization process with Ranger, eliminating the need for additional configuration.

For more instructions on integrating StarRocks with Ranger, see Manage permissions with Apache Ranger.
